String Hardware

String Hardware is used to connect insulators to the tower & conductors. The forged hardware is mainly made of heat-treated steel.This steel is especially suitable for forging and its good performance, especially ductility, is due to the heat treatment process.

Standards: The bolts are according to DIN 931 – grade 8.8 Split pins are made of stainless steel. Standards for balls and sockets according to IEC 120.

Dimensions of other connections are shown in the relevant catalogue section & others are available on request. Security split pins for sockets are in accordance to BS 3288.

Hot Dip Galvanizing: Steel hardware is hot dip galvanized.
Galvanizing can be done in accordance to international standards. Such as ASTM 153, ASTM 123.
DOWNLOAD PDF
TITLE DESCRIPTION MATERIAL
Adjustable Extension link From 120 up to 600 KN with different dimension steel
Ball clevis From 120 up to 600 KN with different dimension Forged steel
Ball clevis From 120 up to 300 KN - According to IEC 120 Forged steel
Chain From 120 up to 600 KN Forged steel
Clamp connector From 120 up to 600 KN with different dimension steel

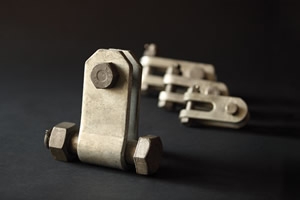

Clevis connector From 120 up to 420 KN Forged steel
Clevis tongue From 80 up to 210 KN for different suspension clamp Forged steel
Extension link From 120 up to 600 KN with different dimension steel
O-ball From 70 up to 210 KN - According to IEC 120 Ductile cast Iron & Forged steel
Sag adjuster link From 160 up to 210 KN Forged steel
Socket clevis From 70 up to 210 KN – According to IEC 120 Ductile cast Iron & Forged steel
Socket tongue From 160 up to 500 KN Forged steel

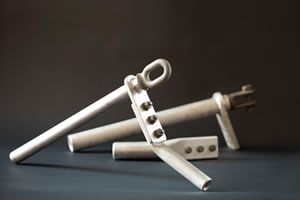

Turn buckle From 120 up to 210 KN Forged steel
Y -ball From 70 up to 160 KN - According to IEC 120 Forged steel
Yoke plate From 120 up to 600 KN with different dimension Forged steel
