"Namdar Afroz is an engineering and manufacturing Company since 1995 in the fields of high voltage transmission line fittings, Substation Clamps & XLPE"

Namdar Afroz is an engineering and manufacturing company since 1995 in the fields of high voltage transmission line fittings, Substation Clamps & XLPE cable Fittings. Our products cover various voltages, Levels from 63 KV up to 765 KV.

Our factory is located closed to Qazvin city, in Leeya Industrial zone, and our production capacity is more than 1000 km of Transmission line fittings for various voltage levels in year, in addition to Substation Clamps & XLPE cable Fittings.

Our team is constantly striving to provide best possible solution to meet our client's needs. Our range of fittings for high and medium voltage overhead lines together with tools and accessories includes more than 500 different type of fittings, so that we can cope speedily and optimally with all client requirements.

At Namdar we tailor our services to meet the unique requirements of our clients.

FACILITIES & FACTORY PREMISES:

  • Land Area: 13,719 Sq. Meters
  • Production Hall: 2,500 Sq. Meters
  • Warehouse: Covered Area: 1,400 Sq. Meters, Open Space: 4,000 Sq. Meters
  • Laboratory: 180 Sq. Meters
  • Administration &Service Building: 450 Sq. Meters
  • Electricity Supply: 450 AMPS.
  • Fuel: Natural Gas (60 PSIG)
  • Head Office Building And Engineering Department: 330 Sq. Meters

DESIGN SOFTWARE & HARDWARE TABLE:

  1. Design Software Such As: Autocad, MDT (3D) &CATIA (Mold Design)
  2. Complete Files Of "IEC ", "ASTM ", " DIN" & "BSI" Standards.
  3. Software For Vibration Study Of "Damper" & "Spacer- Damper"
  4. Software For Vibration Study Of Anti Galloping Damper (TDD)
  5. Warehousing Software
Damper DTD OPGW transmission_line transmission_line turning machine

"Namdar Afroz is an organization manufacturing & engineering since 1995 in the fields of high voltage transmission line fittings, Substation Clamps & XLPE"

OUR MACHINERY & EQUIPMENTS DETAILS:

  1. Vertical drilling M/C: 13 Sets
  2. Armor rod production unit: 2 Set & Relevant Accessories
  3. Welding Machines: 4 Sets
  4. Welding Rectifier: 2 Set
  5. TIG welding unit: 2 Set
  6. Mig – Mag welding unit: 2 Set
  7. 150 M. tons Hydraulic press: 2 Set
  8. 100 Mtons Hydraulic press: 3 Sets
  9. 80 Mtons forge press: 2 Set
  10. 40 Mtons Hydraulic press: 2 Sets
  11. Permanent Mold – cast machine: 5 Sets
  12. Melting furnace: 5 Set
  13. Cutting Machine: 4 Sets
  14. Wire – Drawing forming machine: One Set
  15. Corona ring forming machine: 1 Set
  16. Polishing M/C: 6 Sets
  17. Aluminum Cutting M/C: 2 Set
  18. Lathe M/C: 2 Set
  19. NC universal Milling M/C: One Set
  20. CNC lathe M/C: One set
  21. CNC universal Milling M/C: One Set
  22. Universal Milling M/C: One Set
  23. Lift – Truck 3MTon: 2 Sets
  24. Continues Ink Jet Printer for code printing: One Set
  25. Pneumatic Facilities for assembly line: 3 Set
  26. Upset forged machine: one set
  27. Induction furnace: one set

PERMANET MANPOWER & RELEVANT QUALIFICATIONS:

  1. Production engineers: 5 persons
  2. Design engineers: 6 persons
  3. Research & development engineer: 3 persons
  4. Laboratory engineer: 1 person
  5. Production technicians: 15 persons
  6. Laboratory technicians: 3 persons
  7. Accountants: 4 persons
  8. Office staff: 7 persons
  9. Production labor: 30 persons

OUR LABORATORY EQUIOPMENTS DETAILS:

  1. Multi – Function unit for measuring Tensile strength (Horizontal type up to 60 M. tons & 12 meter length)
  2. Multi – Function unit for mechanical tests (Horizontal type up to 16 M. tons & 8 meter length)
  3. Instrument for Fatigue test of damper and spacer damper
  4. Instrument for Galvanize testing
  5. Instrument for Dimension measurement
  6. Heat – Cycle test Equipment
  7. Electrical measurement equipment
  8. MetallographicInstruments
  9. Equipment's for chemical test
  10. Metallographic Microscope
  11. Stereo Microscope
  12. Three Dimension tensile strength test, with compression of 4 M. tons
  13. Required equipment's for fatigue and other relevant tests for spacer – damper

Certificates

Namdar Afrooz products comply with all of the relevant international standards.
NamdarAfrooz has also received its ISO9001-2000 certificate in 2005, and its ISO9001-2008 certificate in 2011 from TUV of Germany. As a result, the company has been able to earn the trust and satisfaction of its customers.

To see our company's certificates, click on the links below and download the PDF files.


Iso-9001-2008ISO 9001:2008 Reg No. 01 100 042535 Operation-LicenseOperation License OP No. 127/457 Tuv-9001-2000TÜV Certificate Reg No. 01 100 042535 Tuv-2011TÜV Certificate Renew to 2011
CNC Machine with Monitor CNC Machine with Monitor

"NamdarAfroz has received its ISO9001-2000 certificate in 2005, and its ISO9001-2008 certificate in 2011 from TUV of Germany."

Namdar Afroz Electrical Industries Co. was established in 1995 to fulfill the regional demands for electrical power transmission lines equipments. At the initial steps, the company focused on manufacturing high-voltage transmission lines and substation clamps(between 63kV to 400kV) with an annual capacity of 300 tons. In 1996, the company entered into its first contracts to supply Yazd Alloy Steel Plant's 63kV transmission line equipments, and Rasht-Rudbar-Zanjan's 400kV transmission line. In 2001, the company reached its second milestone by increasing its annual production capacity to 1000 tons. The company's third milestone was reached when its annual production capacity was further increased to 3500 tons in 2010.

While the talented Research and Development team at NamdarAfroz work hard at their state-of-the-art lab to come up with the most innovative designs and products and to keep pace with the latest developments in the world, the company's advanced Quality Control and Quality Assurance labs ensure that its products comply with the latest international standards such as BS and IEC. These products are routinely tested for compliance in some of the world's most advanced and well-respected laboratories such as Italy's CESI and VEIKI in Hungary. Additionally, NamdarAfroz has received its ISO9001-2000 certificate in 2005, and its ISO9001-2008 certificate in 2011 from TUV of Germany.

For the last sixteen years, NamdarAfroz has remained focused on the domestic market and has maintained a steady growth rate in order to keep its significant presence in that market. Nevertheless, the company intends to enter the regional market as well. To achieve this goal, the company increased its annual production level to 3500 tons recently.

Some of the major projects that NamdarAfroz has successfully accomplished during the last 16 years include:

  • Fifthy five lines of 63KV,
  • Twenty four lines of 132KV,
  • Thirty one lines of 230KV,
  • Fourty two lines of 400KV power transmission lines.

The company is ready to provide the following products and services to potential customers:

  • Design and manufacture of power transmission lines Fittings ranging from 63kV to 765kV
  • Design and manufacture of High Voltage Substation Clamps Fittings & Connectors ranging from 63kV to 500kV
  • Design and manufacture of Fiber Optic (OPGW) Fittings
  • Design and manufacture of XLPE Cable Fittings
  • Design and manufacture of High Temperature Low Sag Fittings (ACSS)
  • Design and manufacture of Anti Galloping Dampers & Spacer Dampers
  • Design service and consulting for the Appropriate Selection Of Gravitational Vibration Dampers
  • Design service and consulting for the Appropriate Selection Of Substation Connectors

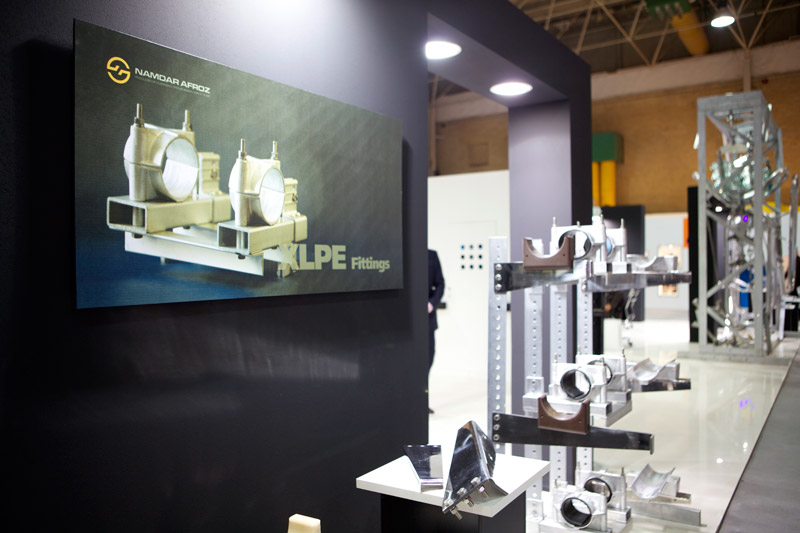

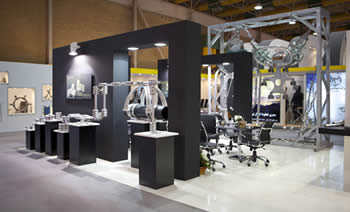

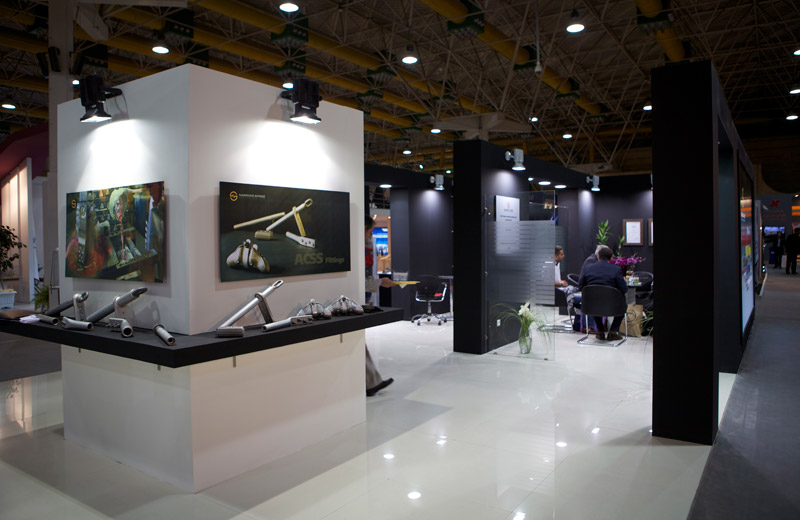

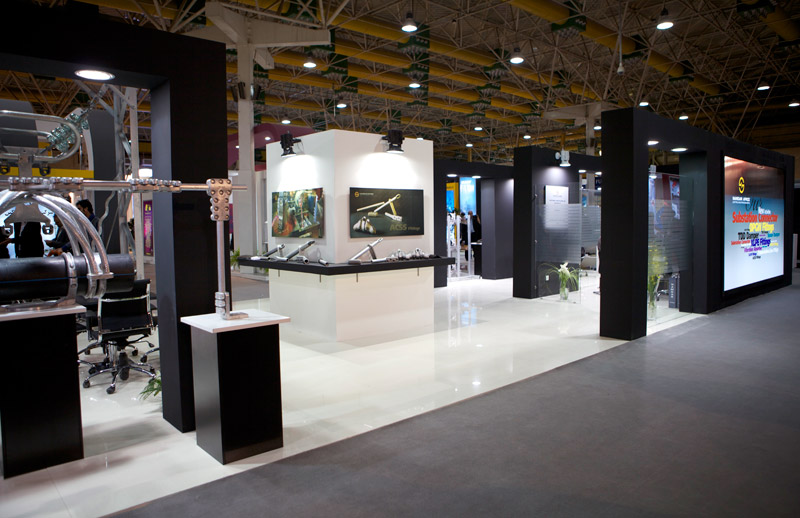

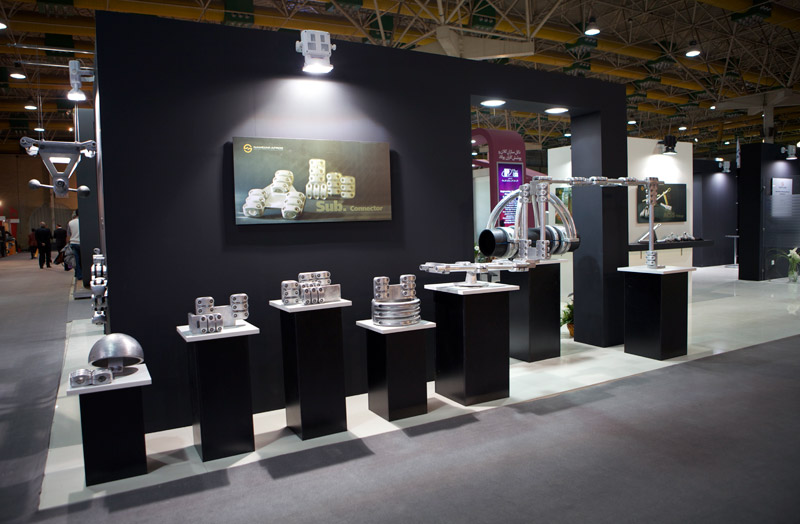

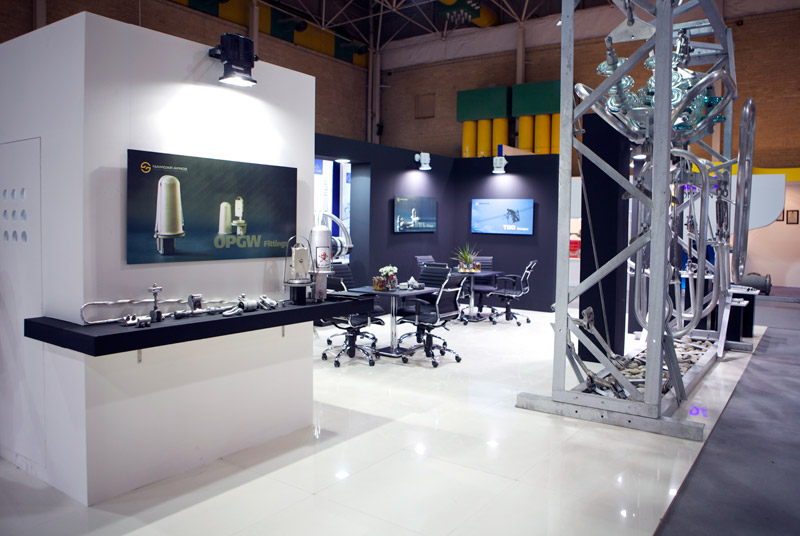

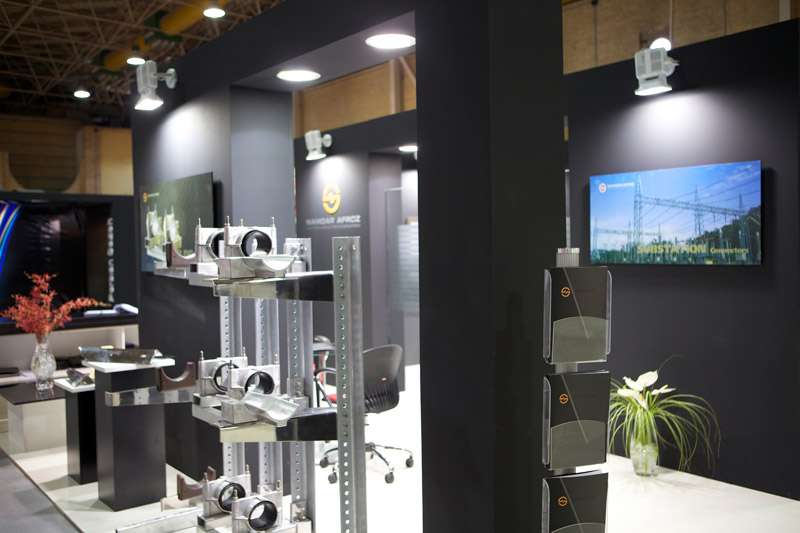

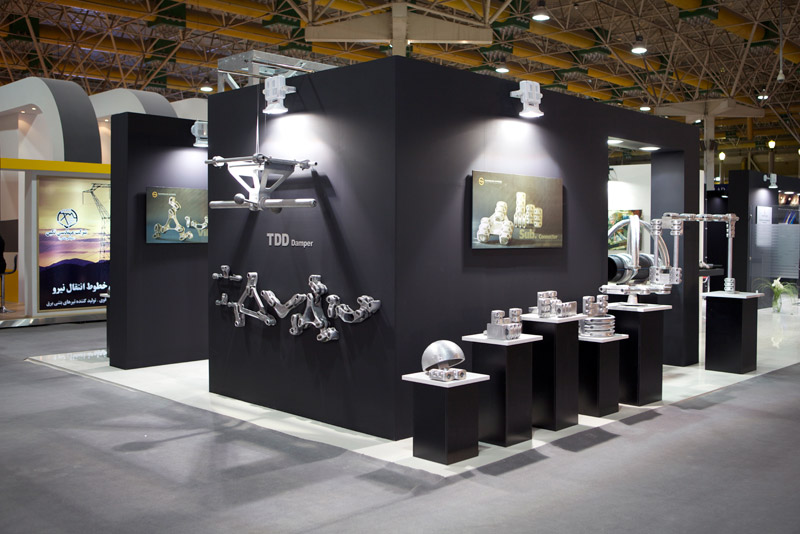

Namdar Stall Namdar Stall
